CNC Beam Drill Lines















The capabilities of this machine include:

  • 48″ maximum Section depth
  • multi-spindle drilling up to 1-9/16″ diameter
  • 6 axis Robotic coper with high-definition (HD) Plasma and Oxy-Fuel cutting torches
  • weld prep flanges and webs +/- 45-degrees
  • full milling capabilities – can mill rat holes flush to the flange
  • mill -OR- burn circles and slots of various sizes
  • split beams
  • has flat-bar capabilities
  • process tube steel and pipe
  • laser probing
  • 4 side scribing

Secondary Drill Line

Our secondary CNC drill line is equipped with a band saw.  The capabilities of this machine include:

  • drill or mill holes
  • straight cuts and miter cuts

Contact us to learn more about our CNC Drill Lines or complete the Request a Quote form below.

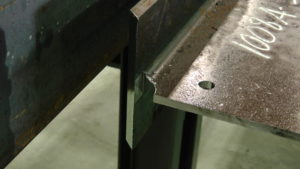

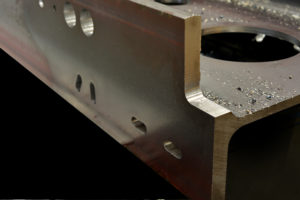

The images below show a beam cut to length with two rows of 7/16” drilled holes; the beam was split on a taper to produce a TEE; the bottom stem was plasma cut down to 1” and a hole was plasma cut for a 8” diameter pipe to fit through.  All this was performed in one operation.  Our operator fed the beam in one end and the finished piece came out the other end.
